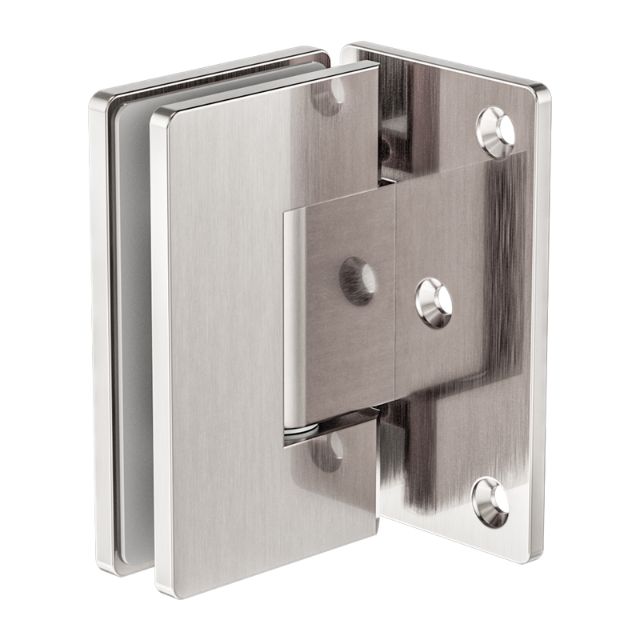

Nero 90 Degree Glass to Wall Shower Hinge 10mm Glass Brushed Nickel

The Nero 90 Degree Glass to Wall Shower Hinge is expertly crafted to provide a seamless and modern look for your bathroom. Its 10mm thick glass and brushed nickel finish offer durability and elegance, while the 90 degree opening angle maximizes space and convenience.

• Hinge designed for connecting glass to a wall
• Enables a 90-degree glass-to-wall connection
• Features a single side mount plate with three wall fixing holes
• Suitable for 10mm thick glass panels
• Supports a maximum door weight of 35kg for two hinges or 52.5kg for three hinges
• Accommodates a maximum door width of 800mm
• Includes hex head machine screws for secure installation
• Supplied with 50mm wall fix screws for added stability
• Hinges allow for both inward and outward opening
• Self-closing functionality from approximately 30 degrees
• Crafted from high-quality brass for durability
• Available in Brushed Gold, Brushed Bronze, Gun Metal, Chrome, Brushed Nickel, or Matte Black finish
• Supported by a 10 year warranty

Specifications

Material construction: Brass
Finish/coating: PVD
Size: 90 degrees wall to glass hinge
Suitability: 10mm glass
Warranty: 10 years

What's In The Box

1x 90 degree glass to wall shower hinge 10mm glass

Downloads

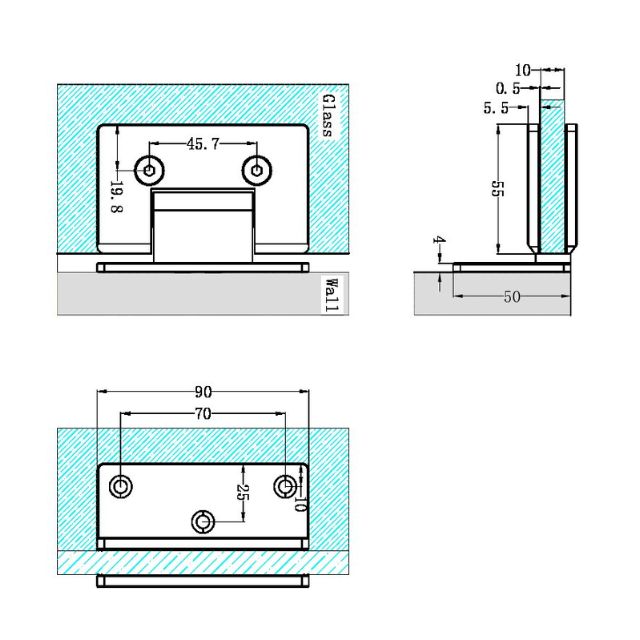

Download the specification sheet & installation guide below:
